Light4Me OCTOS Belysningseffekt

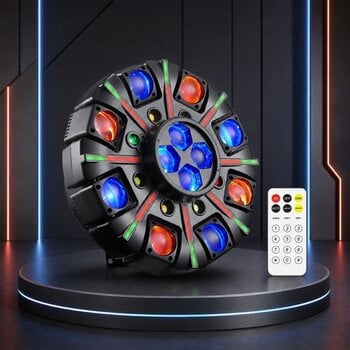

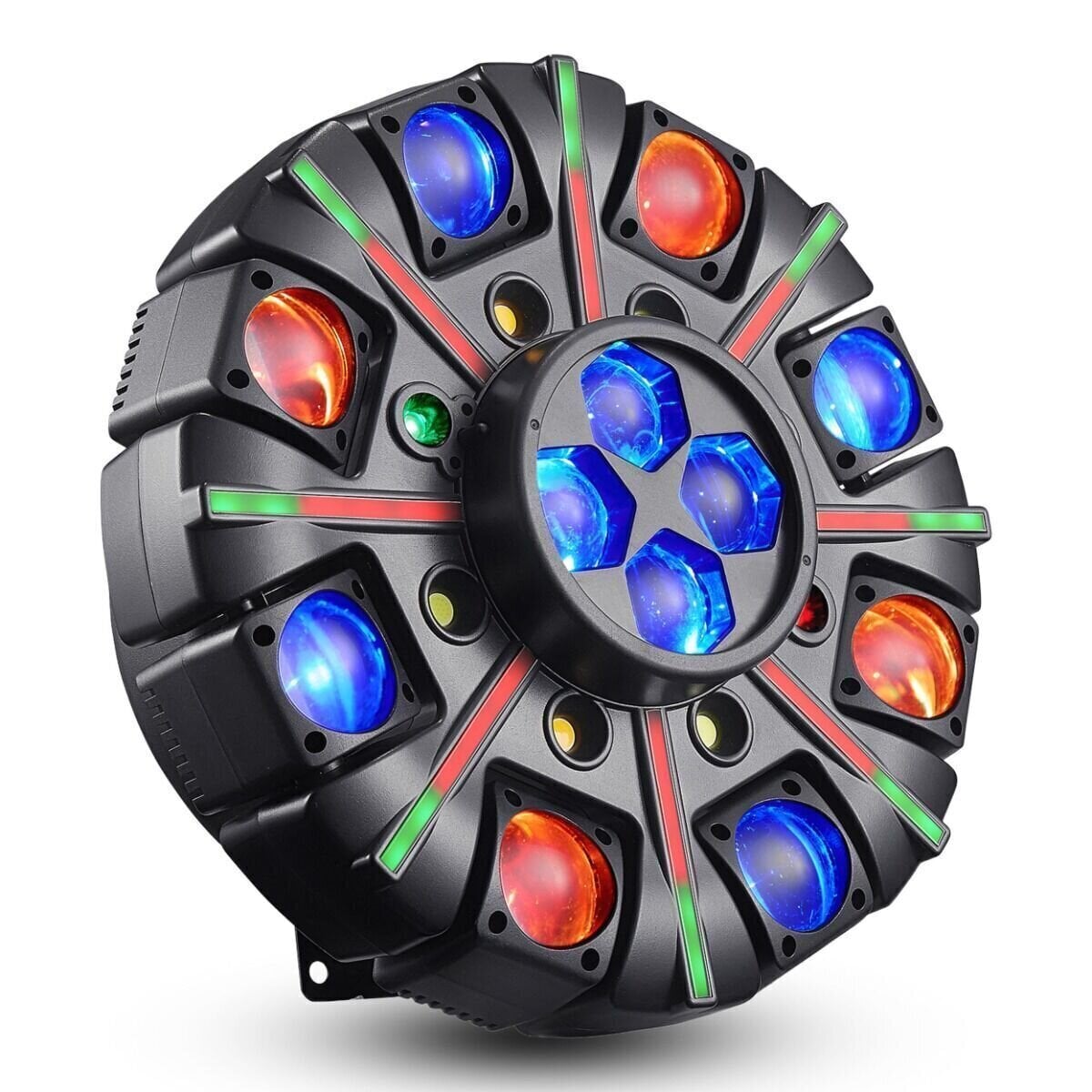

LIGHT4ME OCTOS is a moving 7-in-1 LED DMX lighting multi-effect for DJs and clubs that combines Beam, Bee Eye, two lasers, two strobes and a Strip effect. At a wedding, it can project colorful beams above the dance floor, display laser patterns and accent choruses with cool or warm white flashes. Choose this model in order to create an elaborate lighting setup without setting up multiple separate devices.

Seven LIGHT4ME OCTOS effects create an elaborate stage and dance floor lighting setup

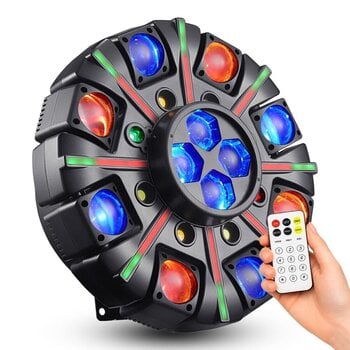

Eight 10W RGBW CREE LED Beam modules arranged radially around the perimeter of the device create two independent beam sections. The central Bee Eye with 4 lenses and 4 × 10W RGBW CREE LEDs rotates bidirectionally within a 0-180° range, while both effects provide smooth RGBW color mixing. Two apertures emit 100 mW red and green laser beams.
The 3 × 5W CW LED White Strobe and 3 × 5W WW LED Golden Strobe let you match the character of the flashes to the event. Eight radially arranged Strip sections with forty 0.2W RGB SMD5050 LEDs offer 24 macros with adjustable speed. This allows the device to "pulse" and create colorful animations.

540° Pan movement and two Beam sections direct light to different areas of the venue
0-540° Pan movement and dual-section 0-100° Beam Tilt movement help direct the beams across the dance floor, walls and ceiling. Adjustable Pan/Tilt speed lets you match the movement dynamics to a calm guest entrance or a fast-paced club set. The full-range linear 0-100% dimmer provides smooth transitions, while the 1-20 Hz strobe accentuates the beat.

Simple LIGHT4ME OCTOS operation speeds up light show setup
Control from the panel, via DMX, with the remote control or by sound lets you select an operating method that suits the available equipment. The device has 8 auto programs with adjustable speed, 2 sound programs with adjustable microphone sensitivity and master/slave and DMX modes. The 4-digit LED display with 4 buttons can be turned off or reversed. The remote control uses the included CR2025 battery.
The 26-channel DMX mode provides detailed control and allows up to 19 identical devices to be connected in one line. The signal is transmitted through 3-pin XLR input and output connectors, while power is connected through an IEC C14 inlet. Active fan cooling supports stable operation during longer events.

Technical specifications:

General information:

• Device type: moving LED DMX lighting multi-effect with wireless remote control and mounting bracket
• Applications: stage lighting, clubs, DJ booths, dance halls, parties and events
• Operating environment: indoors
• IP protection rating: IP20
• Color: black

Light sources and effects:

• Beam effect: 8×10W RGBW CREE 4-in-1 LEDs
• Bee Eye effect: 4×10W RGBW CREE 4-in-1 LEDs
• Laser effect: 100 mW red laser, 100 mW green laser
• Number of laser apertures: 2
• White Strobe effect: 3×5W CW LEDs
• Golden Strobe effect: 3×5W WW LEDs
• Strip effect: 40×0.2W RGB SMD5050 3-in-1 LEDs

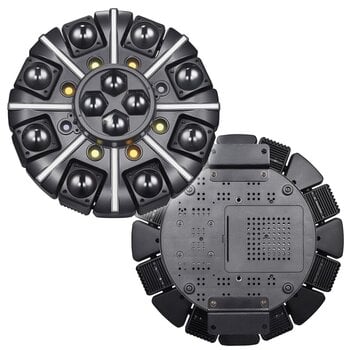

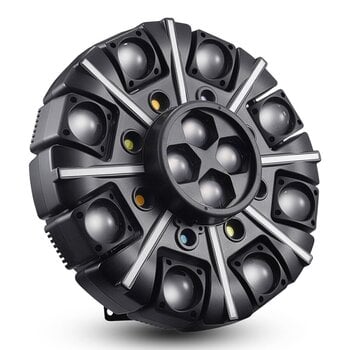

• Beam effect design: 8 lens modules arranged radially around the perimeter of the device
• Bee Eye effect design: central module with 4 lenses
• Strip effect design: 8 light strips arranged radially
• Smooth RGBW color mixing: yes, Beam effect (2 sections) and Bee Eye effect
• Strip effect macros: 24 macros, adjustable speed

Effect movement:

• Pan movement: 0-540°
• Beam effect Tilt movement: 0-100°, 2 sections
• Adjustable Pan/Tilt movement speed: yes
• Bee Eye effect motor rotation: 0-180°, bidirectional

Dimmer and strobe:

• Dimmer: linear, full-range (0-100%)
• Strobe operating frequency: 1-20 Hz, adjustable

Control and operating modes:

• Control methods: control panel, DMX, infrared wireless remote control, sound control
• Operating modes: auto, DMX, master/slave, sound
• Auto mode programs: 8 programs, adjustable operating speed
• Sound mode programs: 2 programs, adjustable microphone sensitivity

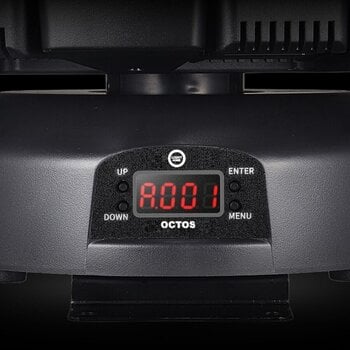

• Control panel: 4-digit, 7-segment LED display and 4 buttons
• Display blackout: yes
• Reverse display orientation: yes
• Device reset: yes

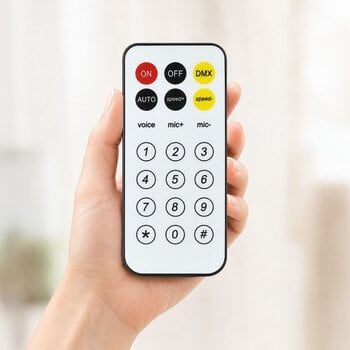

• Remote control battery: CR2025 (included)

DMX control:

• Number of DMX channels: 26

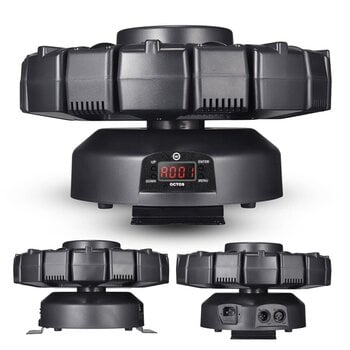

• DMX input: 3-pin male XLR
• DMX output: 3-pin female XLR
• Multiple-device connection capability (daisy-chain DMX signal): yes
• Maximum number of devices in one DMX line: 19

Power supply and cooling:

• Power connector: male IEC (C14) inlet
• Power supply voltage: AC 100-240V, 50/60 Hz
• Power consumption: 150W
• Fuse: 5A
• Cooling system: active fan cooling

Mounting and construction:

• Mounting method: ceiling, lighting stand or truss mounting
• Housing material: ABS plastic
• Mounting bracket and support material: powder-coated iron

Dimensions and weight:

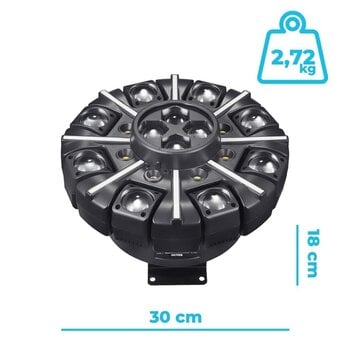

• Device dimensions: 30 × 30 × 18 cm
• Device weight: 2.72 kg
